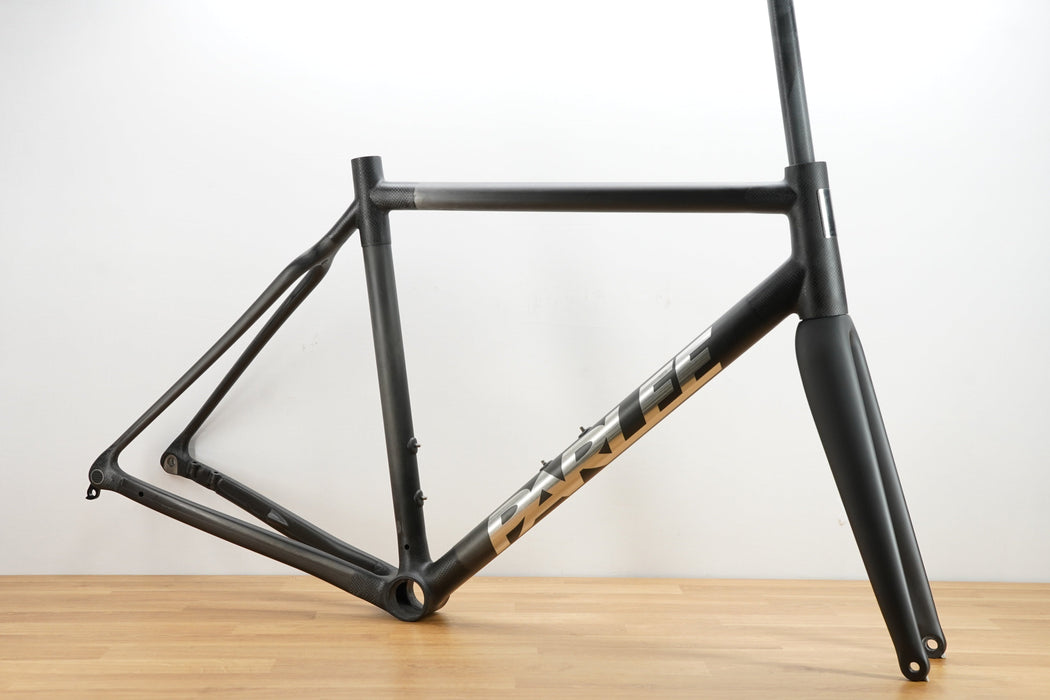

Parlee Z-ZERO Road Disc Frame - NEW

Z-ZERO represents the highest level of boutique craftsman ship from Parlee. Every Z-ZERO frame is hand crafted at Parlee's headquarters in Boston Massachusetts. With these frames Parlee uses unique carbon layups to optimize for speed, responsiveness and weight.

Specs:

• Frame: Parlee Z-ZERO
  • 700c wheel size
  • 46mm bottom bracket shell (Press fit)
  • Internal routing for electronic groupsets (Shimano Di2, SRAM AXS, Campagnolo EPS)
  • 12x142mm hub spacing
  • 30c tire clearance
  • Flat Mount
• Fork:

  • Parlee road disc flat mount
  • 12x100mm hub spacing
  • 43mm offset
  • Integrated crown race
  • Flat Mount
• Includes frame small parts
• Weight (Size Medium): 1066g
• Weight (Fork): 438g
• Total Weight: 1504g

Geometry:

• Extra Small:
  • Headtube Length: 125mm
  • Top Tube Length (Measured Along Tube): 500mm
  • Seat Tube Length (C to T): 470mm
  • Seat Tube Length (C to C): 420mm

• Medium (Parlee size M Tall):
  • Stack: 569mm
  • Reach: 376mm
  • Headtube Length: 165mm
  • Top Tube Length (Effective): 545mm
  • Seat Tube Length (C to T): 530mm
  • Seat Tube Length (C to C): 480mm
  • Head Tube Angle: 73°
  • Seat Tube Angle: 73.5°
  • BB Drop: 70mm

Sourced directly from Parlee. Brand new never been assembled or ridden.

Peak Five guarantee applies. All frames are inspected and guaranteed to be in perfect condition free of manufacturing defects.
